High Pass

Broadband RF high pass filters, implemented with suspended substrate stripline technology.

Low insertion loss, low VSWR, high selectivity: all in compact sizing.

Custom designs available.
broadband rf highpass filter

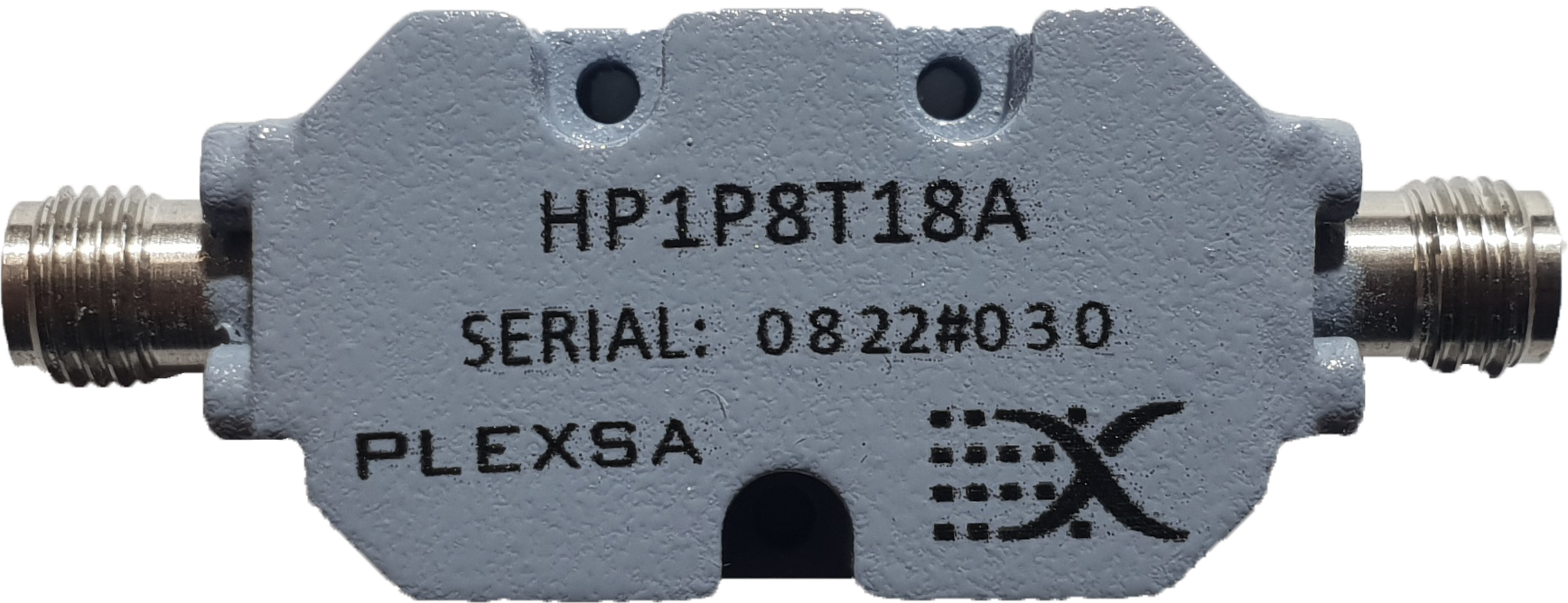

HP1P8T18A

Passband: 1.8 – 18 GHz

broadband rf highpass filter

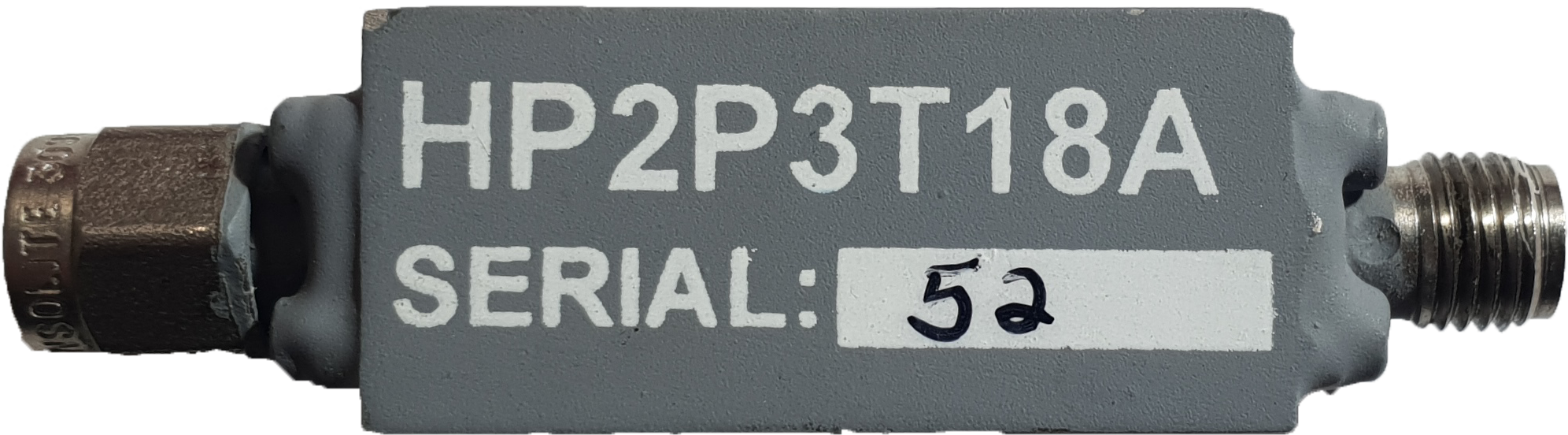

HP2P3T18A

Passband: 2.3 – 18 GHz

broadband rf highpass filter

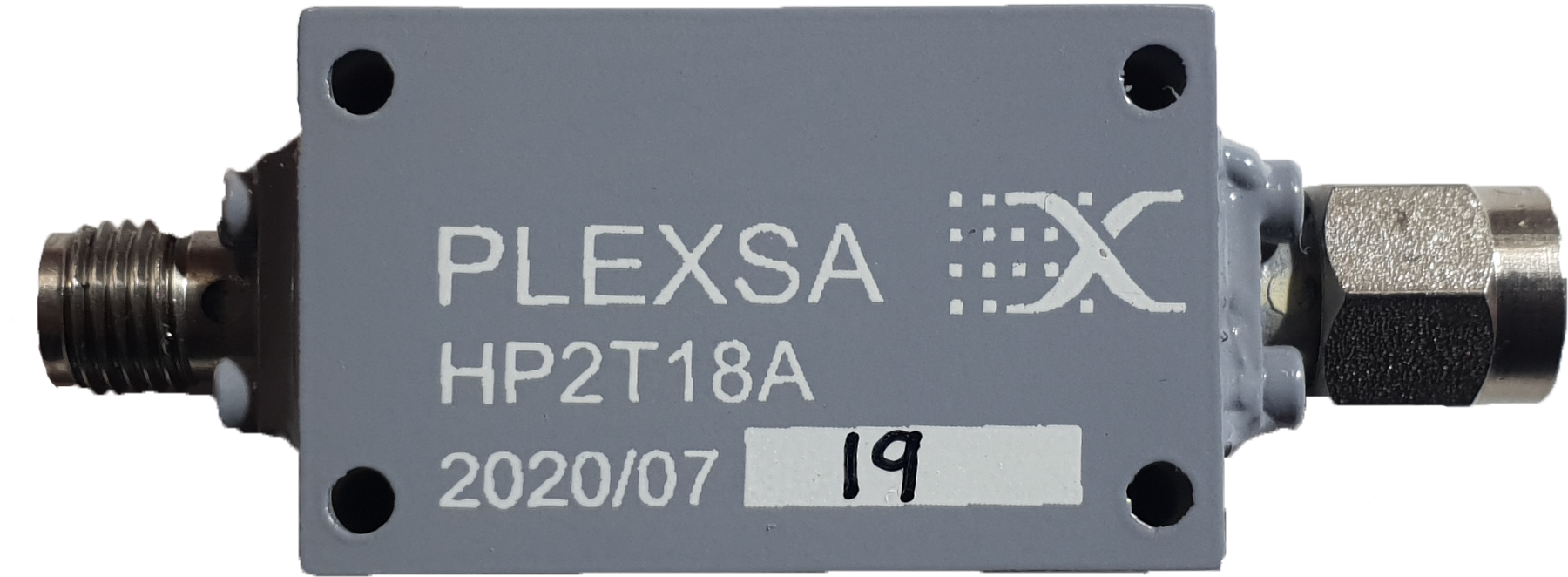

HP2T18A

Passband: 2 – 18 GHz

HP3P95A

Passband: 3.95 – 18 GHz

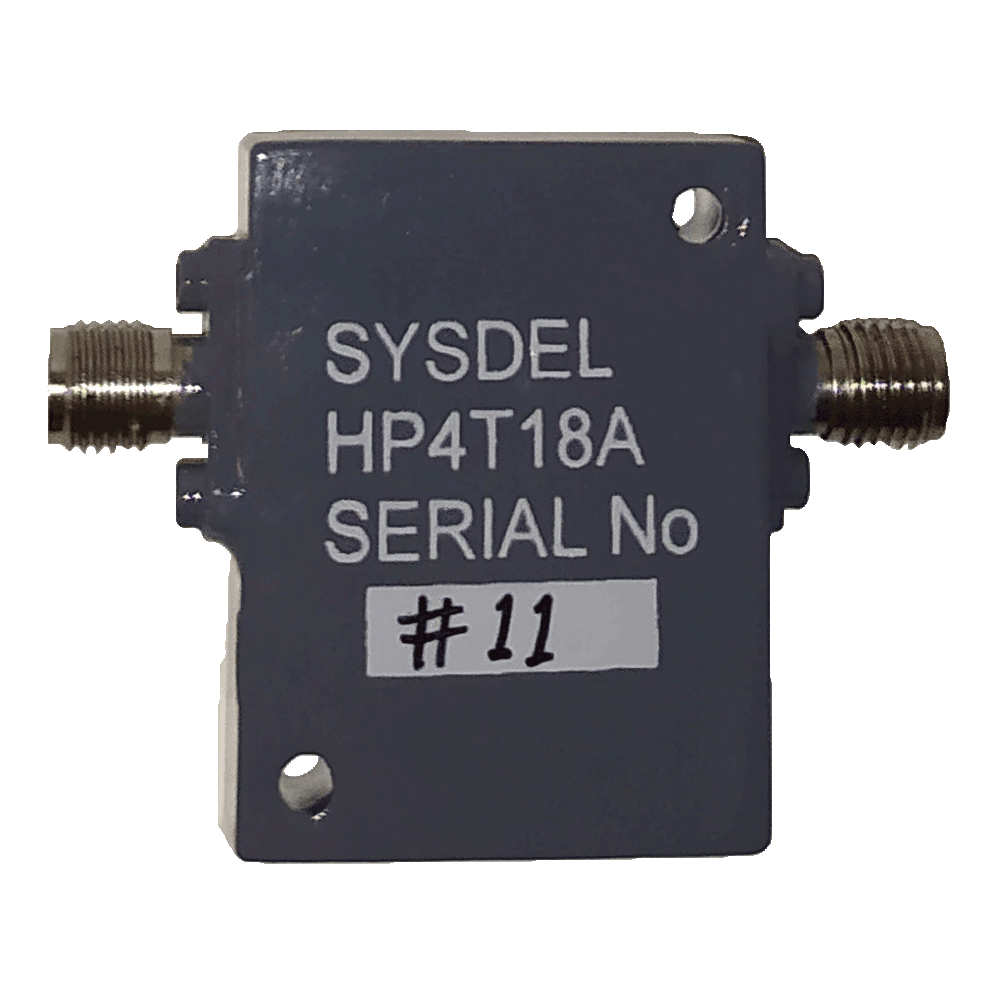

Broadband RF High Pass Filter product passband 4 to 18 GHz plexsa

HP4T18A

Passband: 4 – 18 GHz

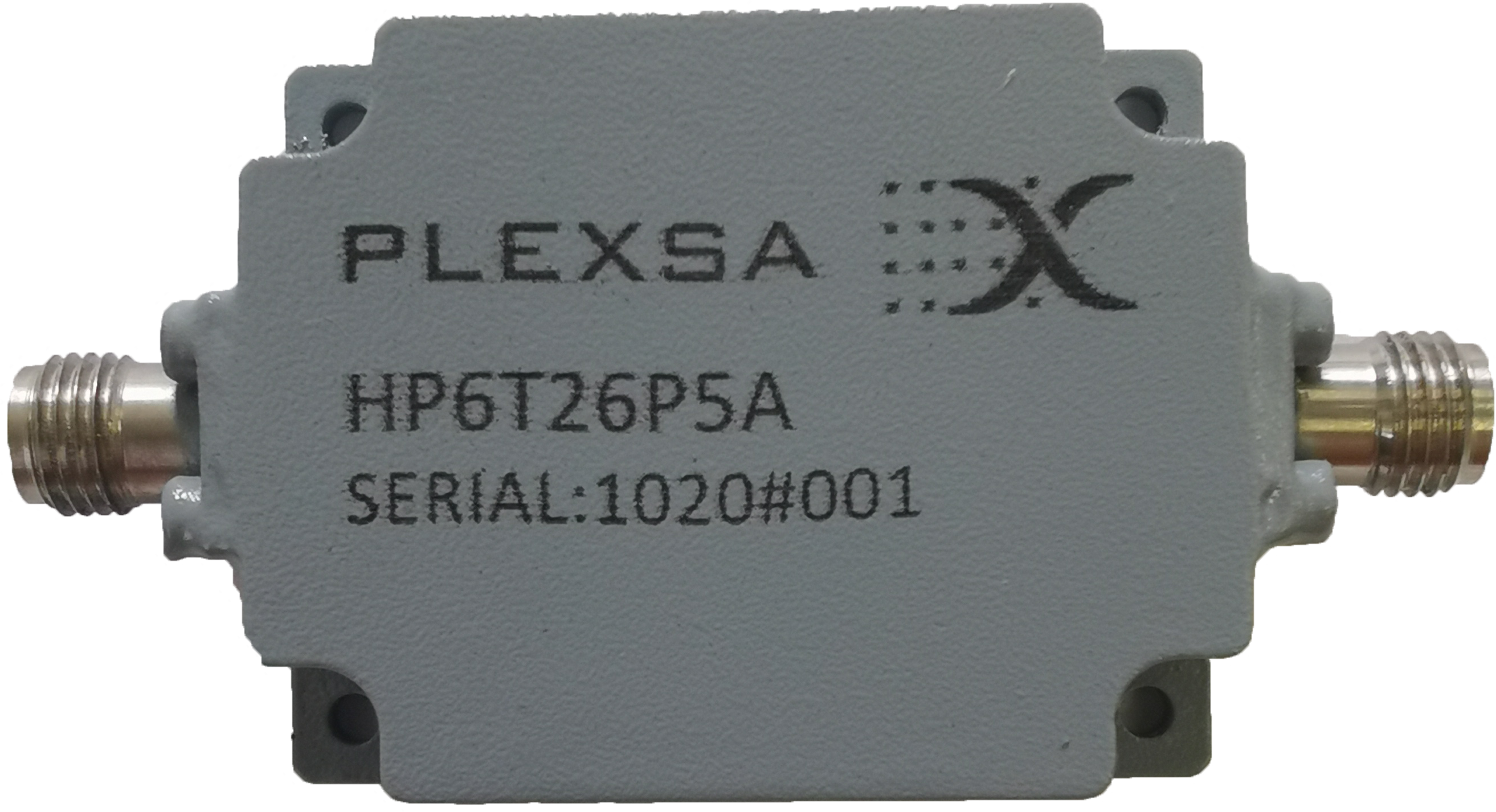

HP6T26P5A

Passband: 6 – 26.5 GHz

HP9P95A

Passband: 9.95 – 20 GHz

broadband rf highpass filter

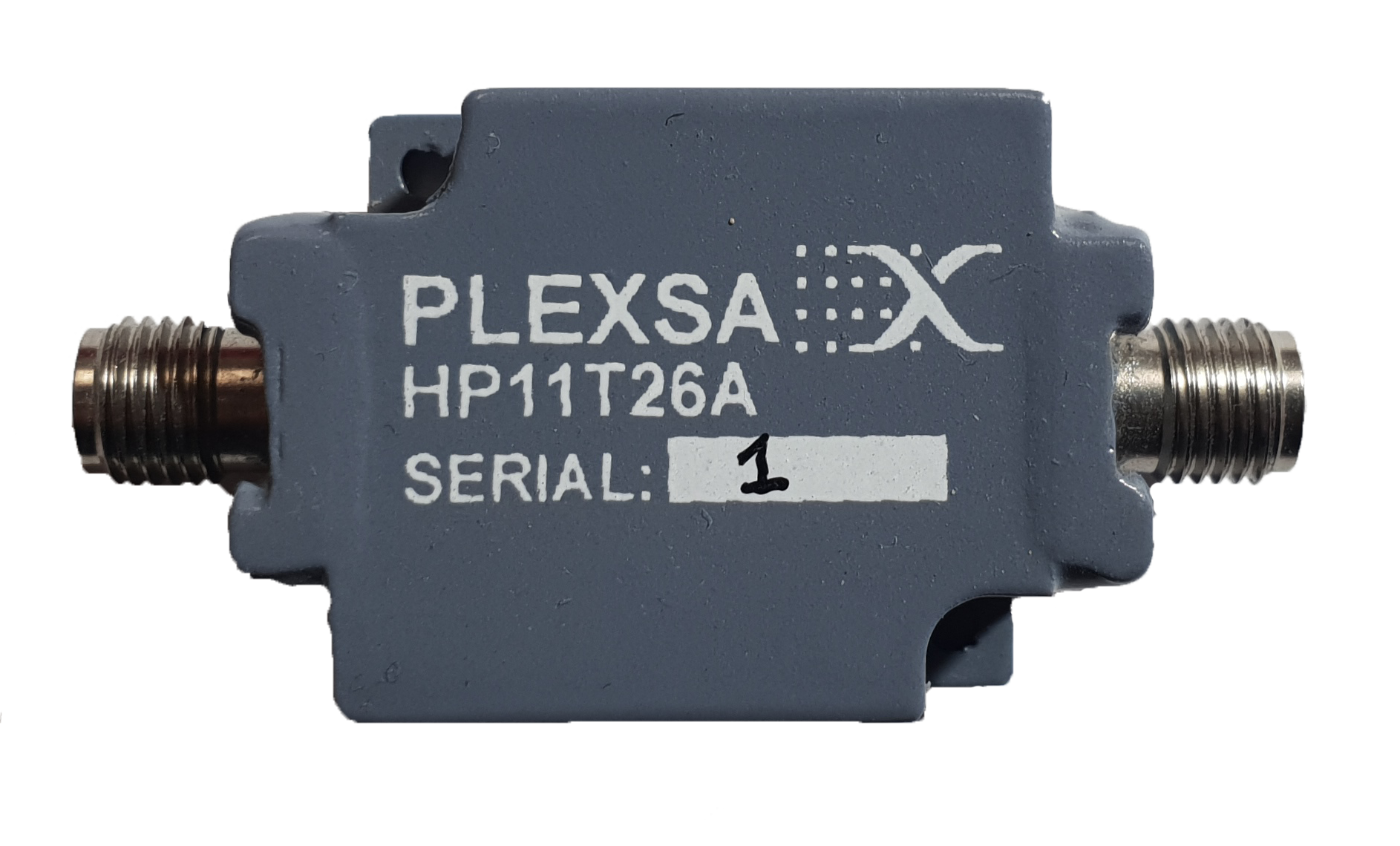

HP11T26A

Passband: 11 – 26 GHz

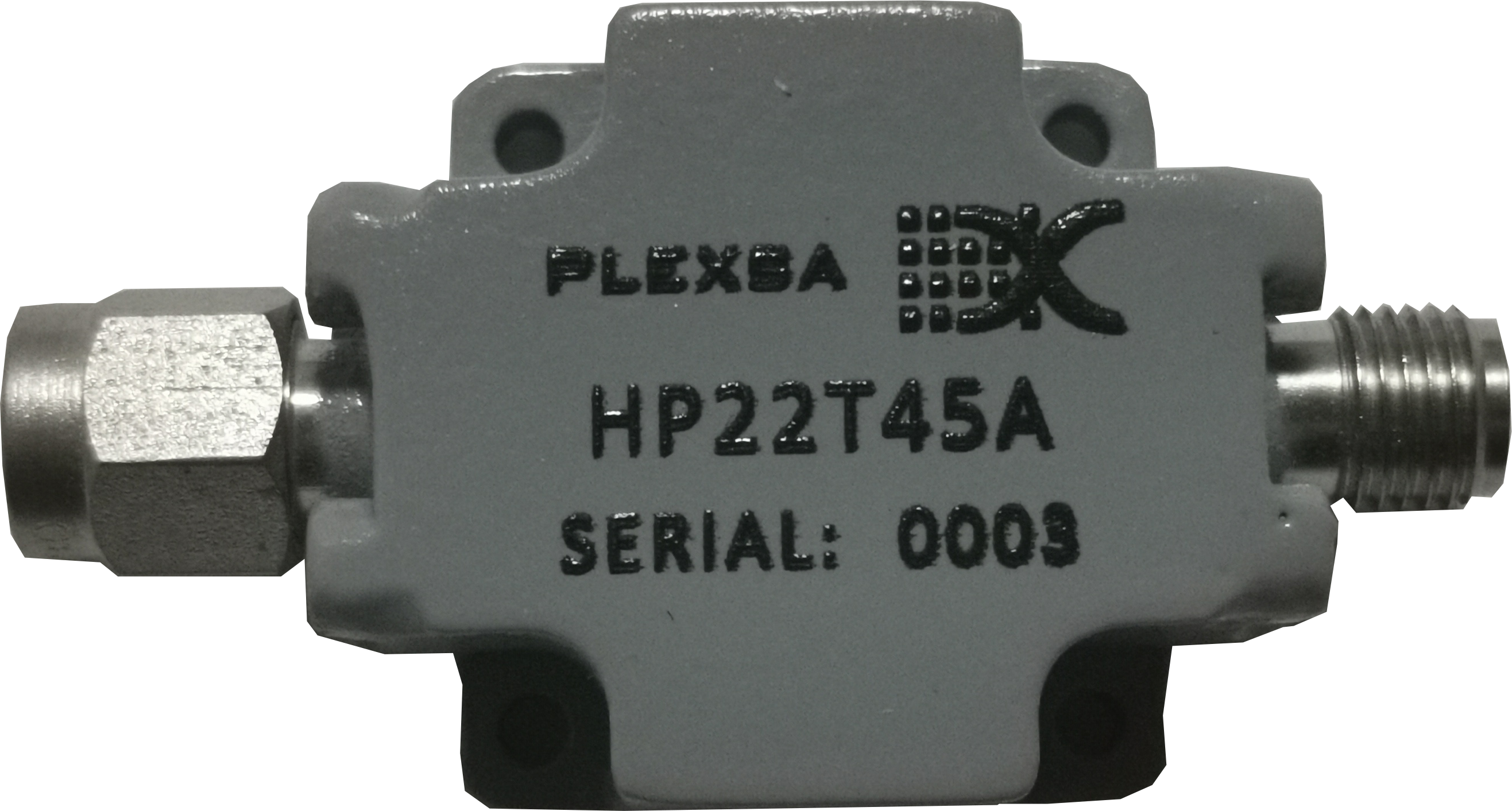

broadband rf high pass filter product passband 22 to 45 GHz input DC to 45 GHz plexsa

HP22T45A

Passband: 22 – 45 GHz

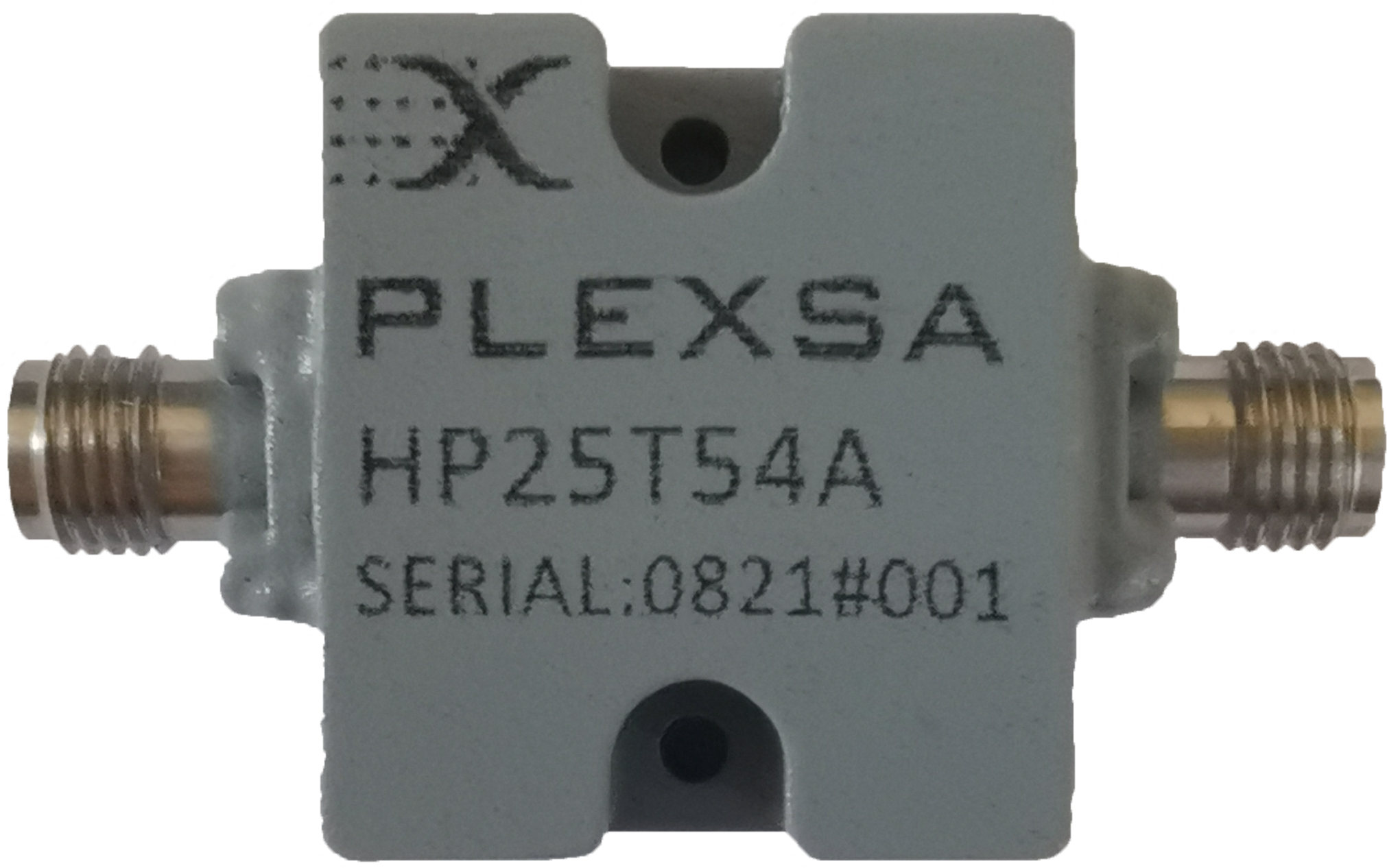

HP25T54A

Passband: 25 – 54 GHz

broadband rf highpass filter

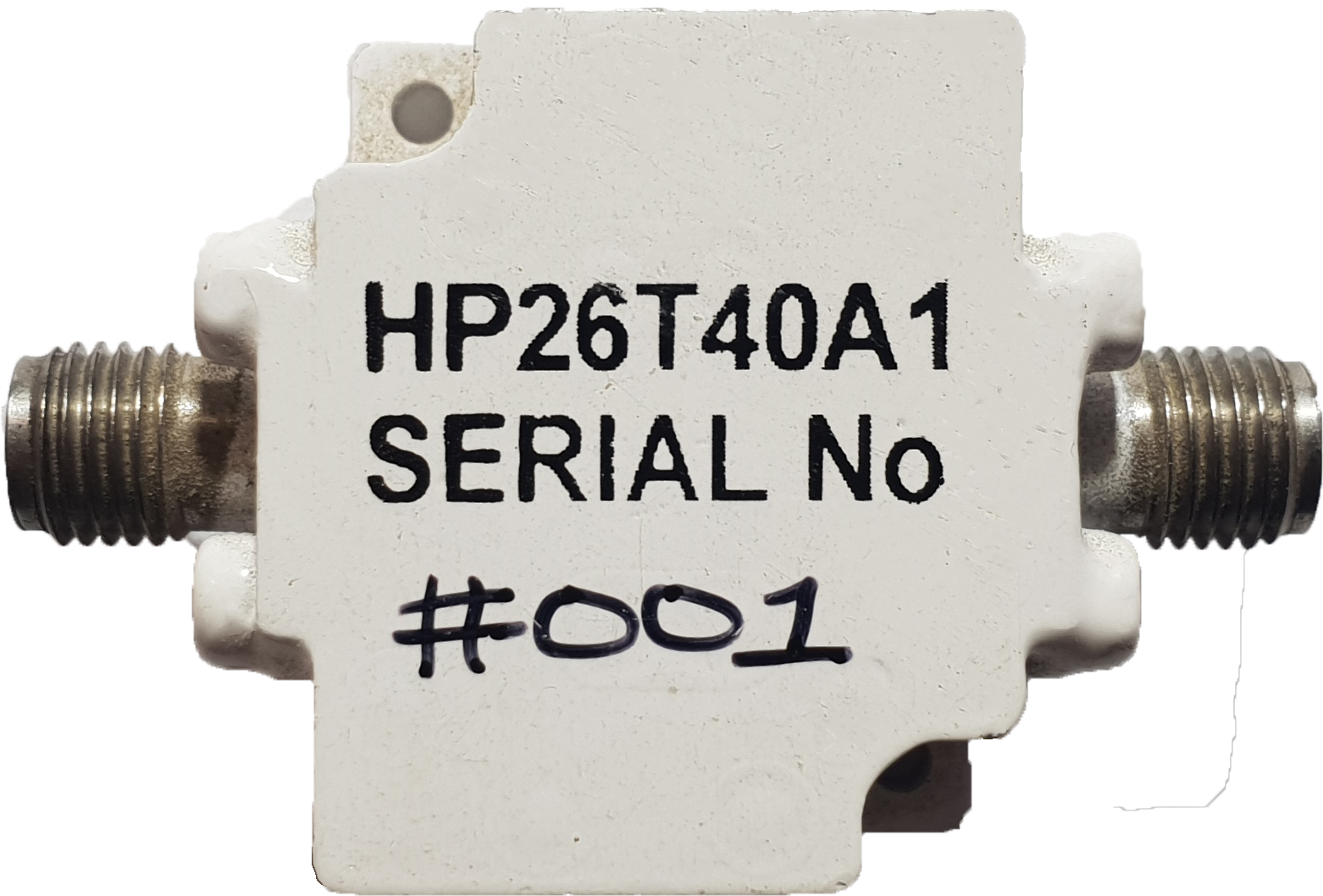

HP26T40A1

Passband: Coming Soon

broadband rf highpass filter

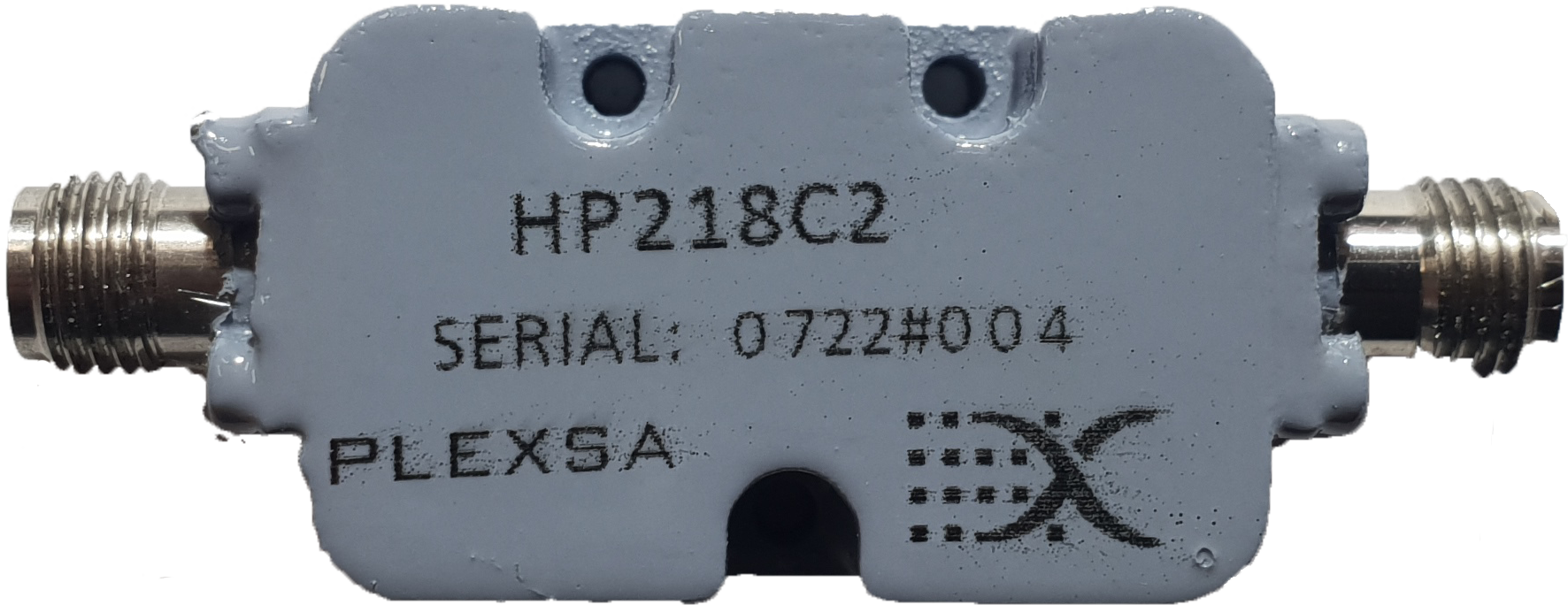

HP218C2

Passband: 2 – 18 GHz

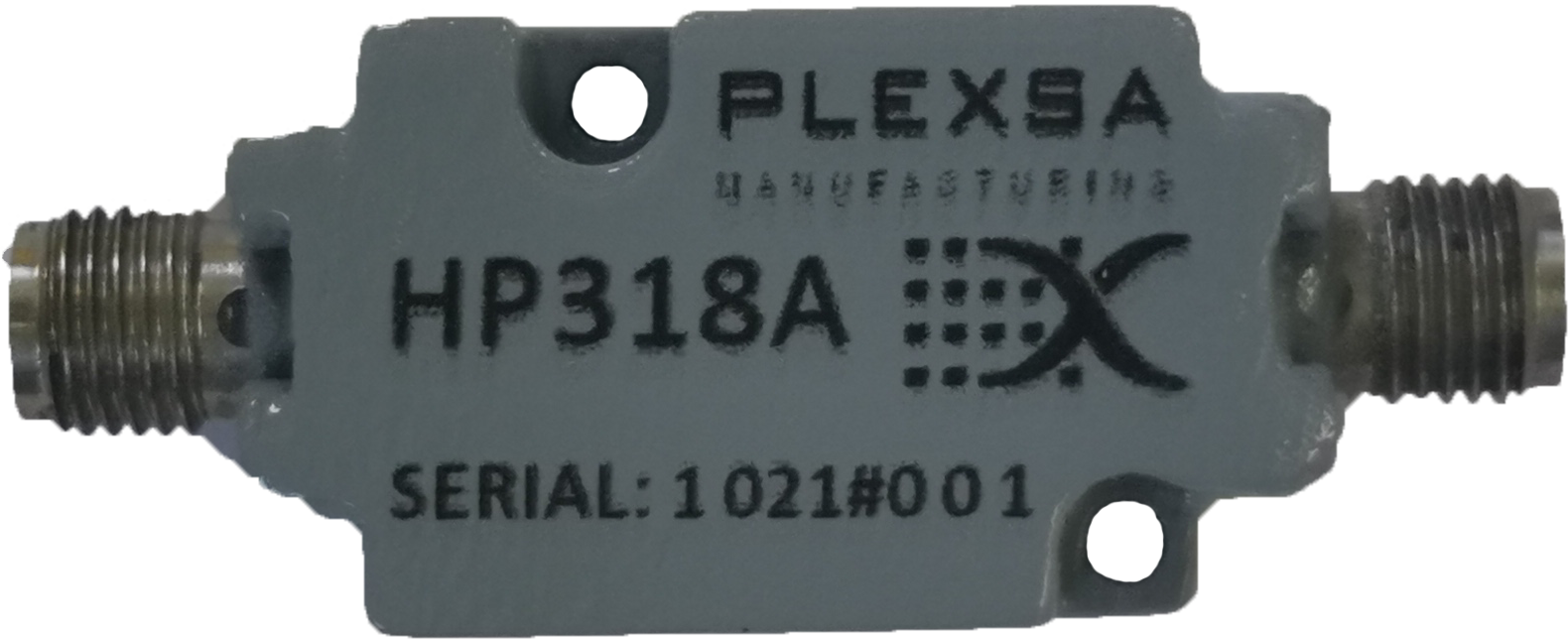

HP318A

Passband: 3 – 18 GHz

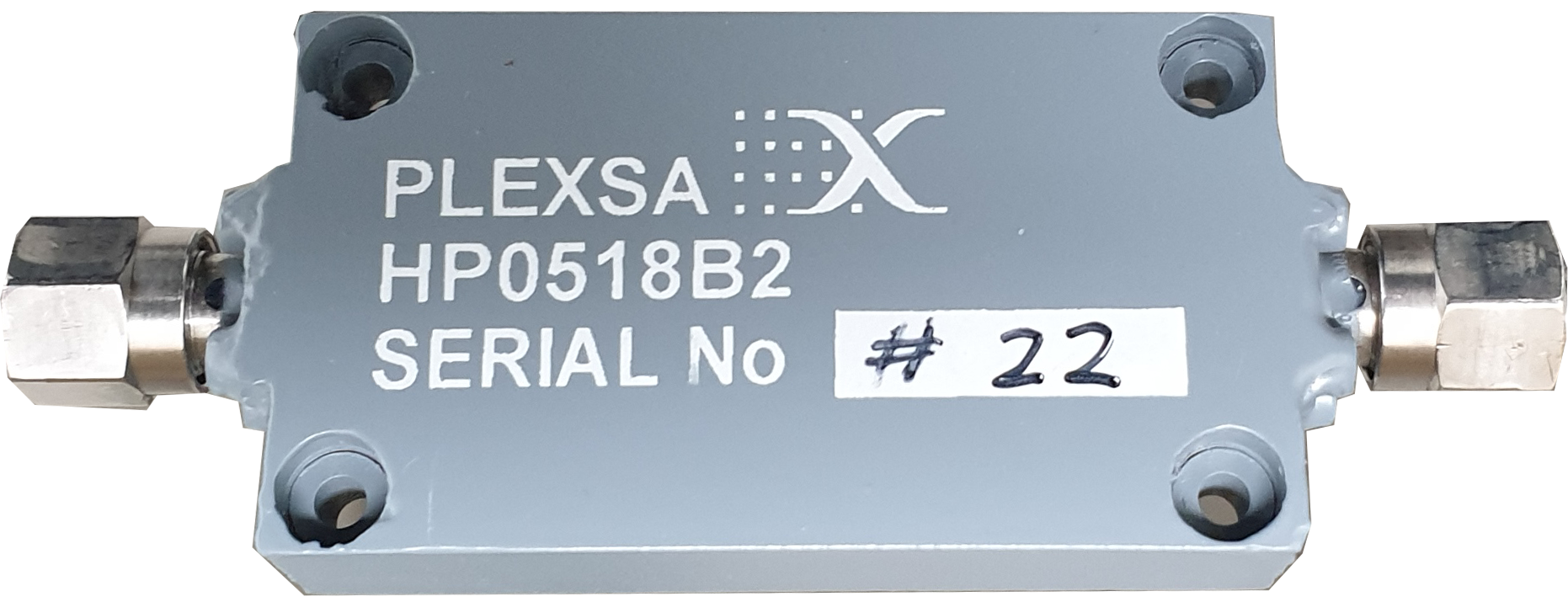

broadband rf high pass filter product passband 0.5 to 18 GHz plexsa

HP0518B

Passband: 0.5 – 18 GHz

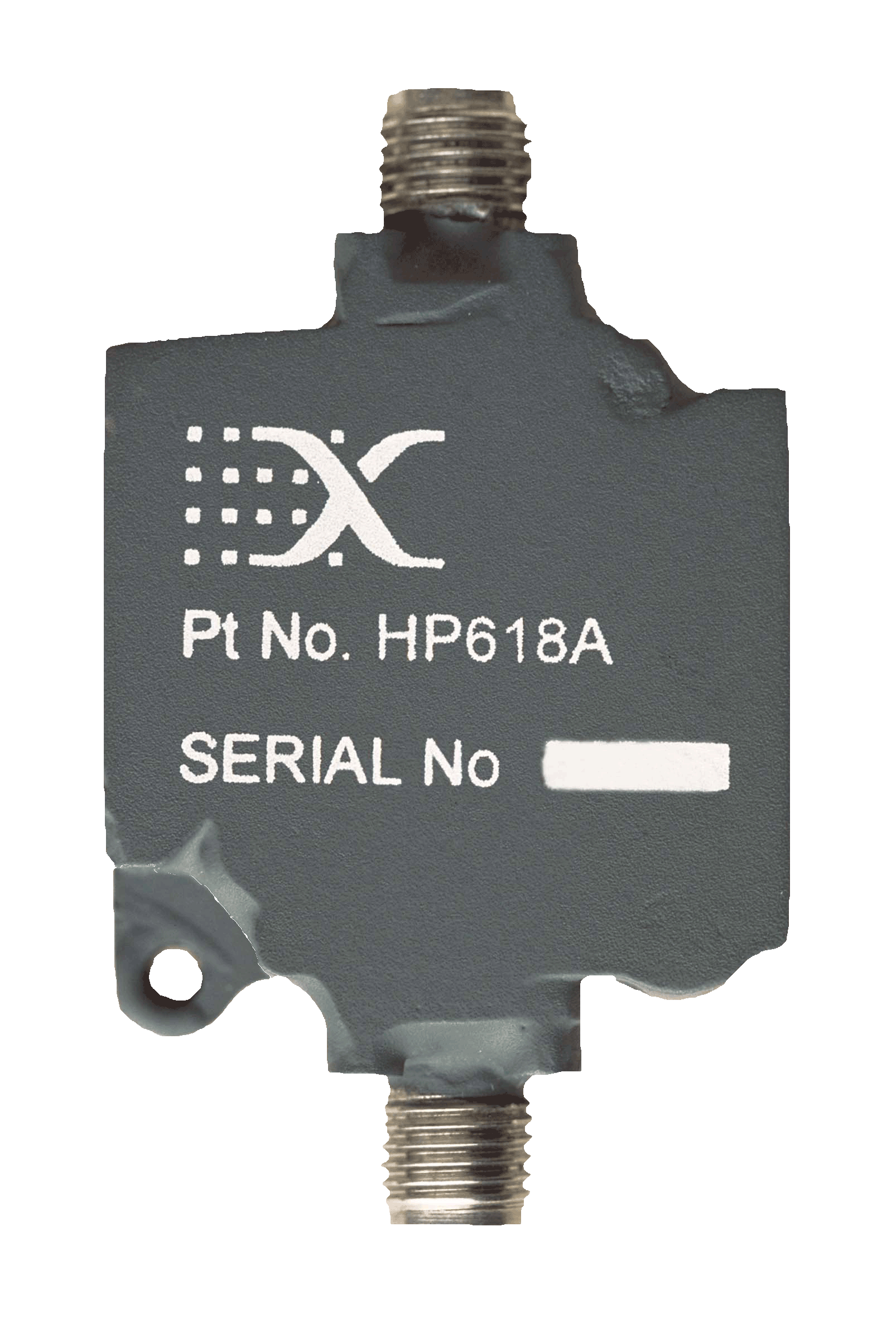

Broadband RF High Pass Filter Product passband 6 to 18 GHz input DC to 18 GHz plexsa

HP618A

Passband: 6 – 18 GHz

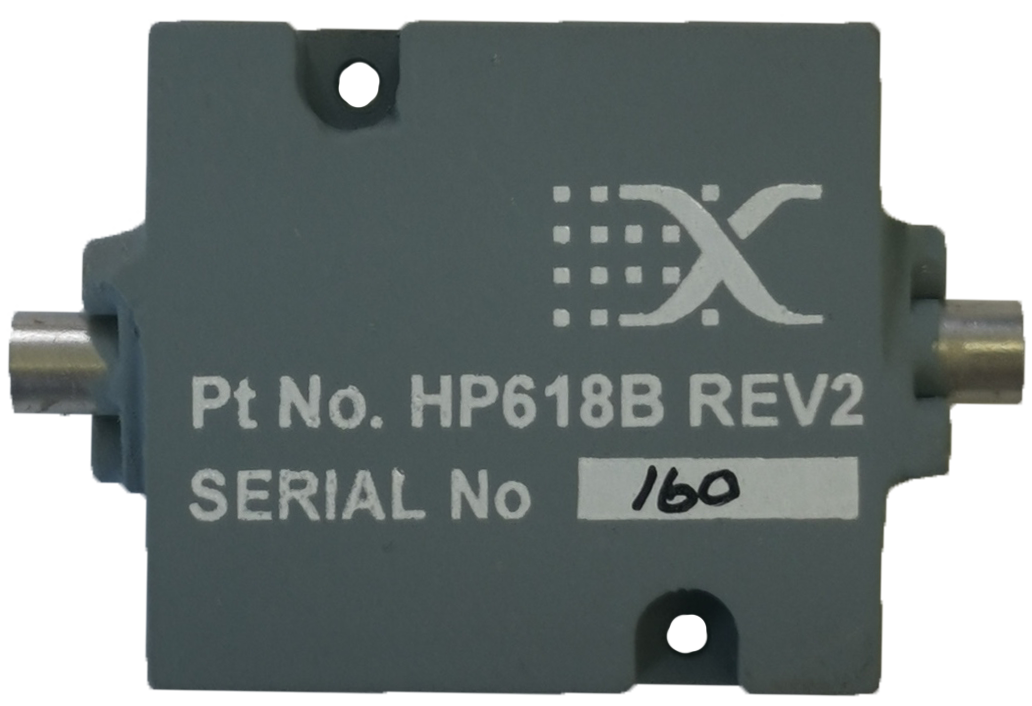

HP618B

Passband: 6 – 18 GHz

Broadband RF High Pass Filter Product passband 8 to 18 GHz input DC to 18 GHz plexsa

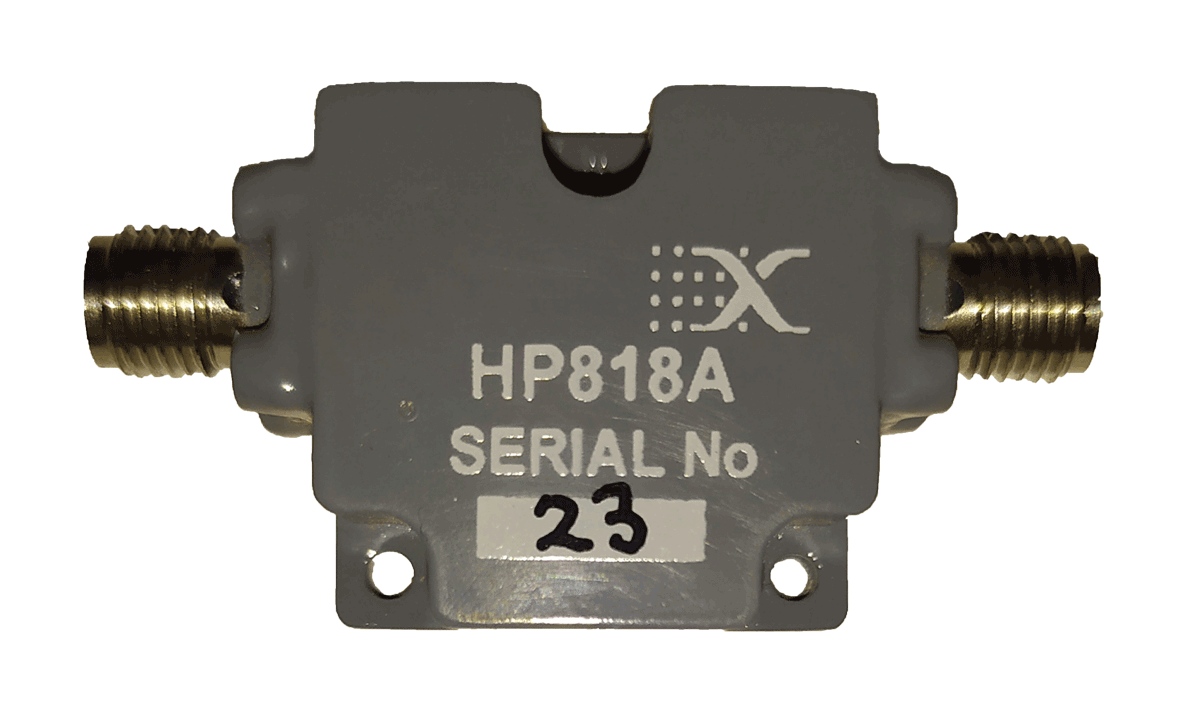

HP818A

Passband: 8 – 18 GHz

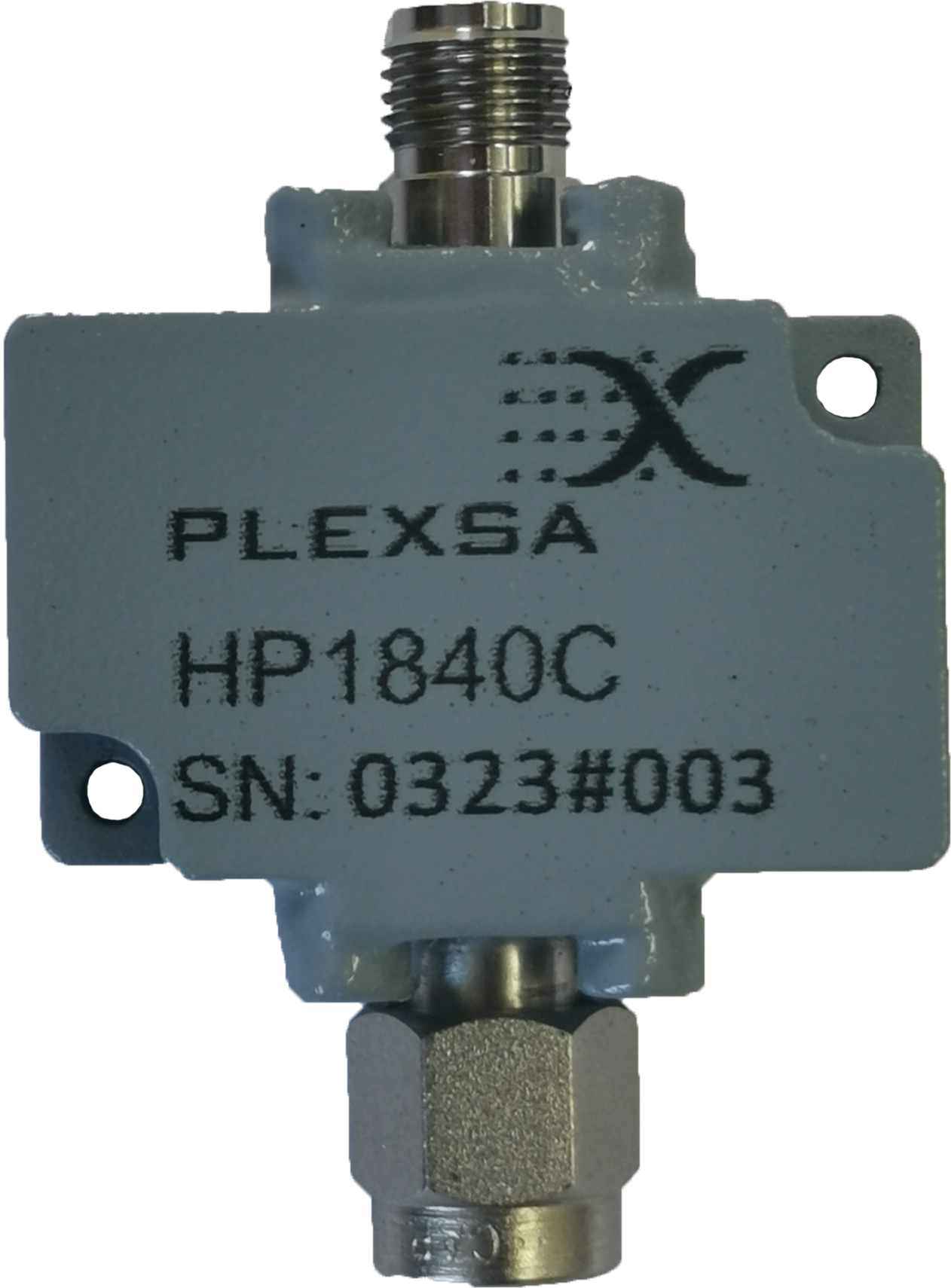

HP1840C

Passband: 18 – 40 GHz

broadband rf high pass filter product passband 0.7 to 18 GHz plexsa

HP07189A

Passband: 0.7 – 18 GHz

Products Qualified to MIL 2000 Production:

Rapidly Prototyped, Precision CNC Manufactured, Electroplated (Nickel and Silver or Gold).

Precision Etched Highest Quality Components and Materials Assembled and Finished by Hand.
